滾珠滑塊及規格 |
規格 |

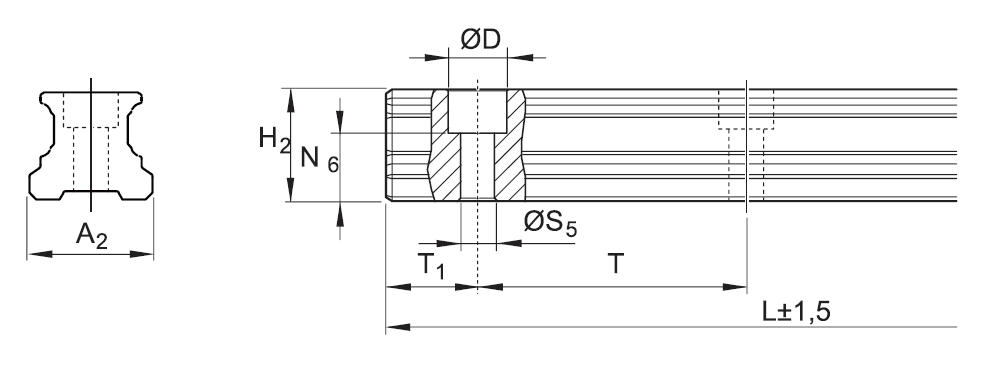

尺寸(mm) |
|||||||
|
A2 |
D |
H2 |
Lmax |
N6±0.5 |
S5 |
T |
T1 min |
||
|
R2055-1 |
15 |
15.0 |
7.4 |
14.1 |
3836 |
8.6 |
4.5 |
60.0 |
10.0 |
|
R2055-8 |
20 |
20.0 |
9.4 |
17.0 |
3836 |
10.0 |
6 |
60.0 |
10.0 |
|
R2055-2 |
25 |
23.0 |
11.0 |
20.0 |
3836 |
11.3 |
7 |
60.0 |
10.0 |
|
R2055-7 |
30 |
28.0 |
15.0 |
23.0 |
3836 |
12.0 |
9 |
80.0 |
12.0 |
|
R2055-3 |
35 |
34.0 |
15.0 |
26.5 |
3836 |
15.5 |
9 |
80.0 |
12.0 |
|
R2055-4 |
45 |
45.0 |
20.0 |
33.0 |
3776 |
17.0 |
14 |
105.0 |
16.0 |
